How it works
A fabric duct releases air along its whole length.
A sheet-metal system pushes air out of a few spaced grilles, so the throw is concentrated and the room is uneven. A TurboaSOX duct is a calculated textile surface: air leaves gently and evenly along the full run, in the pattern the space was designed for.
Even, not concentrated
The same air, spread the way the room needs it.
The method
Four stages, in order, on every project.
Even air is the output of good analysis, not a property of the fabric on its own. Nothing here is templated.
Site analysis
We read the space before we draw anything: the heat load, the layout and height, the process the air has to serve, and the cleanliness the facility needs to hold.
Precise design
The run is custom designed and vetted in computational fluid dynamics, modelling airflow velocities and the patterns the duct will hold. High-throw nozzles are then tested physically on our own rig.
Fabric selection
The technical fabric is hand-picked for the application and air-handling requirement: inherently fire-retardant as standard, with anti-microbial or anti-static grades where the process calls for them.
Execution
Cut on our laser machines, stitched and reinforced in our facility, then installed with a light suspension and clear drawings. We supervise on site, and we maintain and refit the duct over its life.

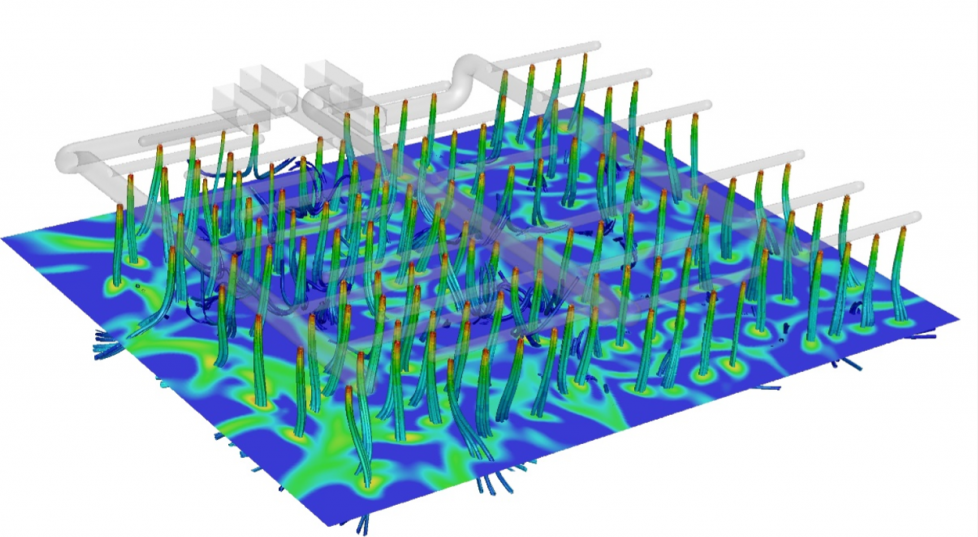

Vetted in CFD
We model the air before we cut the fabric.
Every design is checked in computational fluid dynamics so the throw, the velocity and the coverage are known on screen first. The orifices and high-throw nozzles are then proven on a physical test rig. The room gets the airflow it was designed for, not an approximation.
Fabric against sheet metal
Where the difference shows up.
| TurboaSOX fabric | Conventional sheet metal | |
|---|---|---|
| Air distribution | Even, along the whole length, in a designed pattern | Concentrated throw from a few spaced grilles |
| Cleaning | Unzips and washes; no internal crevices | Tedious, expensive, rarely complete inside |
| Hygiene | Certified fire-retardant fabric; anti-microbial grade available | Holds condensation, grease and dust internally |
| Structure load | Light; a false ceiling is not required | Heavy; often needs a false ceiling that traps dirt |
| Installation | Fast, with a light aluminium suspension | Slower, heavier, more rigging |
| Return air | SOXProp inner-ring retention holds shape at negative pressure | Rigid, but harder to clean and heavier |
As metal prices have risen, the cost gap between TurboaSOX and conventional ducting has narrowed.
