The range
One system, configured for your room.
A TurboaSOX duct is assembled from a small, deliberate kit: a fabric grade for the application, a shape for the space, a retention system to hold it, and the fittings to route it. Every run is then custom designed for the project.
Fabric grades
Three grades, chosen for the process.
| Grade | Fabric | Chosen for |
|---|---|---|
| TS-PE-FR | 100% polyester, inherently fire-retardant | The standard, for most supply-air work |
| TS-PE-FR-AM | Fire-retardant, with an anti-microbial coating | Food, pharma, healthcare, cleanrooms |
| TS-PE-FR-AS | Fire-retardant, with an anti-static coating | Electronics and battery lines, where static matters |
All grades are certified to NFPA 701, EN-13501-1, BS-476 and ASTM E-84. Fabrics and certification
Anatomy
What a run is made of.
Shapes
Five profiles, for five kinds of space.

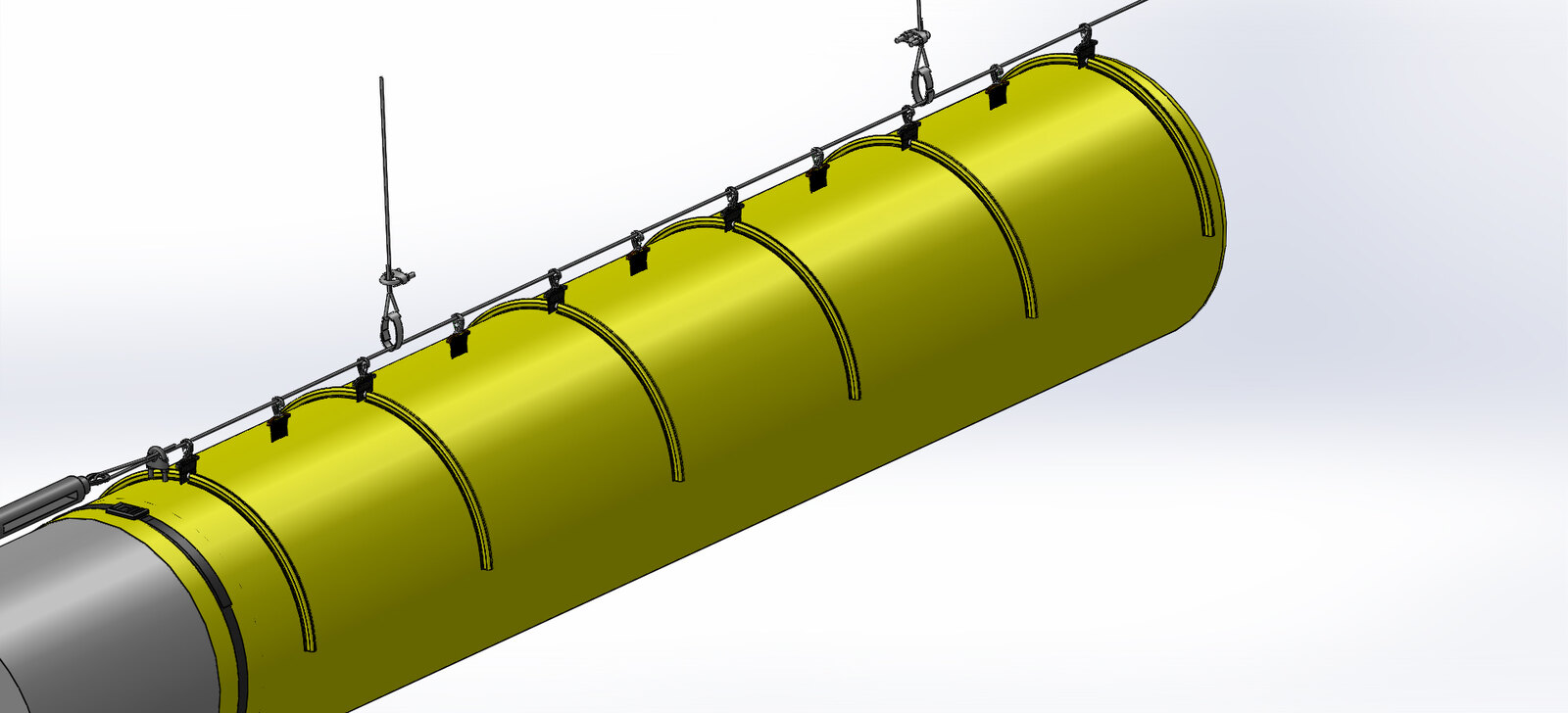

Round
Our recommended profile. The least static loss and the most cost-effective.
Segment
For architectural requirements, where a flat face suits the ceiling line.

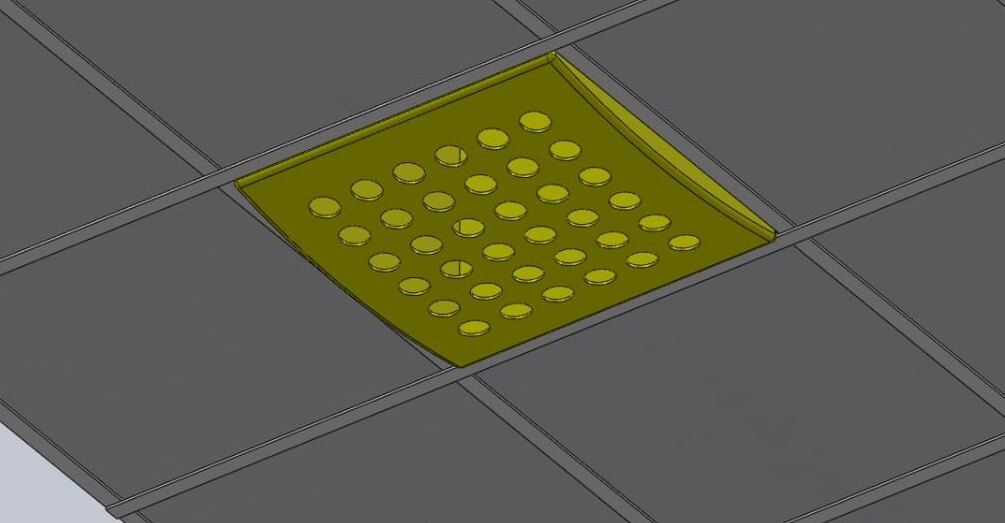

Ceiling diffuser
A clean, hygienic substitute for a metal grille, flush to the ceiling.
Semi-circle
For tight height, with a custom track suspension.
360 degree
Full-circle dispersion for a large zone, at the most cost-effective price.
Routing
Elbows, T, Y, U and Plus joints, reducers and volume-control devices, all in fabric.
SOXProp retention
Holding the shape when the air is off.

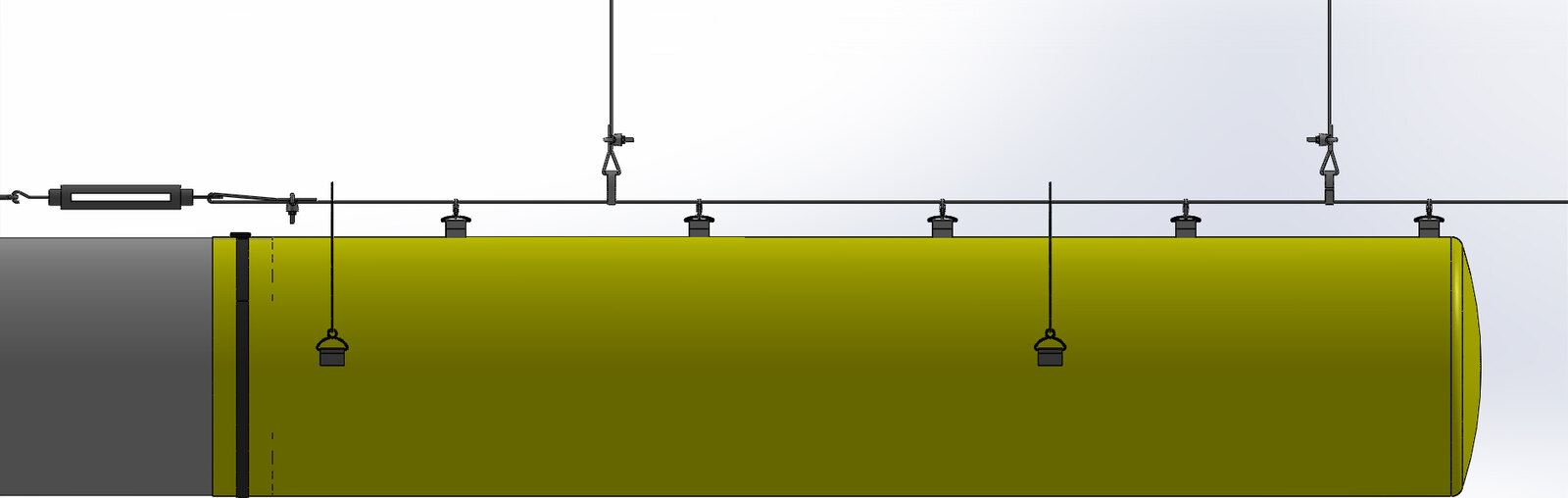

A fabric duct takes its shape from the airflow. SOXProp aluminium rings hold that shape between runs, without ever touching the air or forming a crevice for dust.
Wide intervals
Light semi-circular rings in the outer loops, where there is no height restriction. Aesthetic, and out of the airstream.
Closer intervals
The same rings set closer together, to hold full shape even with no airflow at all.
Full inner ring
A full aluminium inner-ring system for supply and return air. Built for return-air ducting at negative pressure, and where aesthetics lead.

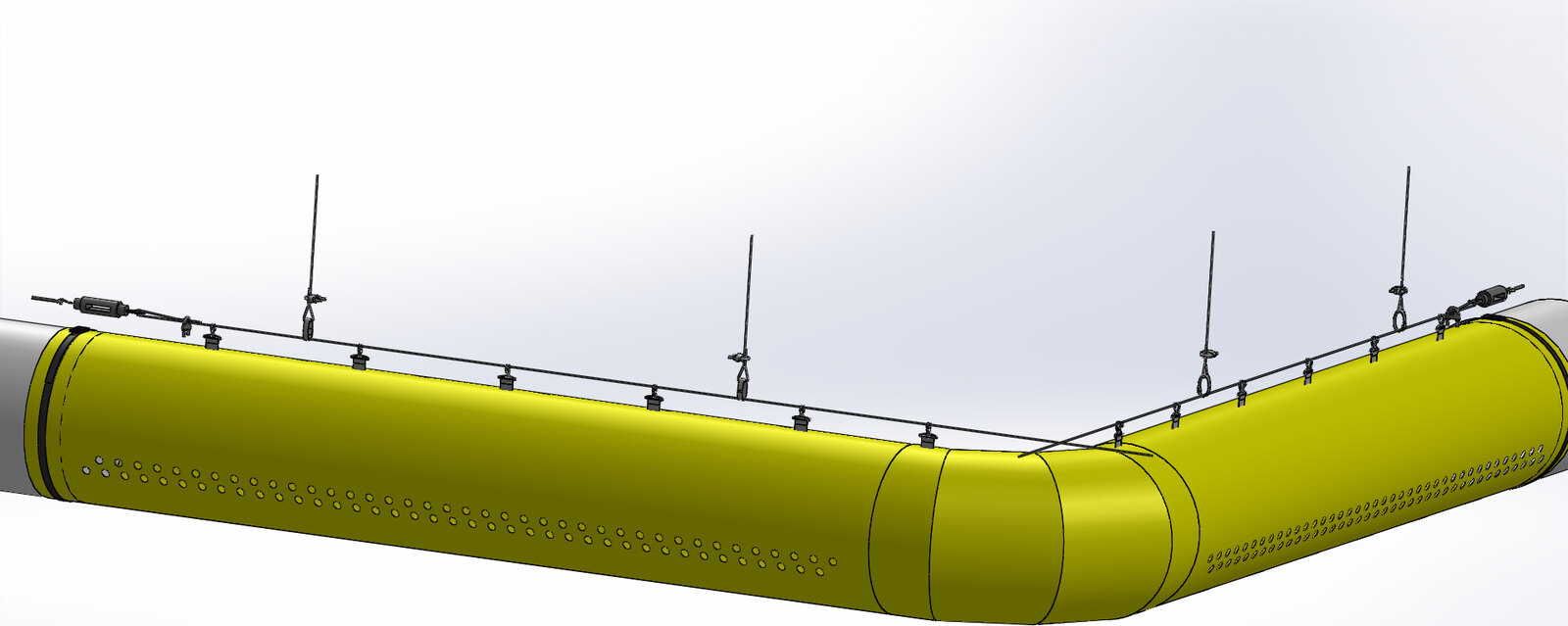

Fittings
Everything to route the run, in fabric.
The kit routes through any layout without returning to metal: elbows at the bend you need, T, Y, U and Plus joints, reducers, and TurboaSOX fabric volume-control devices, each made to the project drawing.
